Lima Locomotive & Machine Co.

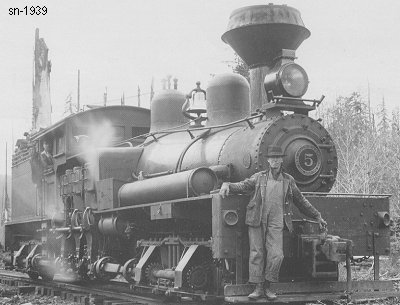

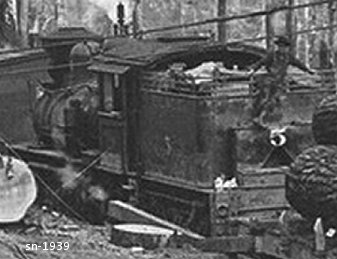

Photo Credit:
Left: Jones Photography
Right: University of Oregon collection
Shop Number 1939 - Built for: Salem, Fall City & Western RY
{1,378th Lima Built Shay}
Built:
6-29-1907
Class:
B
60-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.211
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
23,868 Lbs.
Factor of
Adhesion:

5.10
Maximum
Safe Speed:

19.4
Fuel Type:
Wood
Fuel Capacity:
2 Cords
Water Capacity:
2,000 Gallons
Empty Weight:
As built
100,115
Owners: (Includes new data after 2018 Shay book completed)
Hofius Steel & Equip. Co. (D), Seattle, WA
Salem, Falls City & Western RY #5, Dallas, OR
(1912) Dallas Lbr. & Log. Co. #5, Dallas, OR
(7-1-1915) Southern Pacific Co. (Salem, Falls City & Western RY, #5), Dallas, OR
(1916) Charles K. Spaulding Log. Co. (Marys River Log. Co., #5), Philomath, OR
(10-17-1924) Willamette Valley Lbr. Co., #5, Black Rock, OR
Disposition: Scrapped
Additional Notes:
