Lima Locomotive & Machine Co.

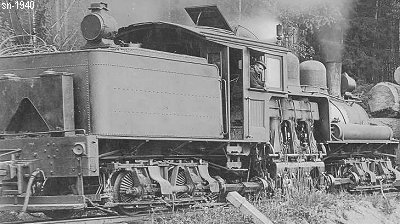

Photo Credit:
Martin E. Hansen collection (1912)
Shop Number 1940 - Built for: Curtiss Lbr. Co.
{1,379th Lima Built Shay}
Built:
10-10-1907
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
22,563 Lbs.
 Factor of
Adhesion:
4.50
Maximum
Safe Speed:
17.2
Fuel Type:
Wood
Fuel Capacity:
2 Cords
Water Capacity:
1,750 Gallons
Empty Weight:
As built
83,600
Owners:
Norman B. Livermore & Co. (D), San Francisco, CA
Curtiss Lbr. Co. #2, Mill City, OR
(c1912) Union Tbr. Co., Oakville, WA
(c1913) Skagit Log. Co. #1, Clear Lake, WA
(c1914) Clear Lake Lbr. Co. #1, Clear Lake, WA
(6-19-1929) Puget Sound Pulp & Tbr.r Co. #1, Clear Lake, WA
(6-15-1945) Engine in storage at Clear Lake, WA
Disposition: Scrapped
Additional Notes:
