Lima Locomotive & Machine Co.

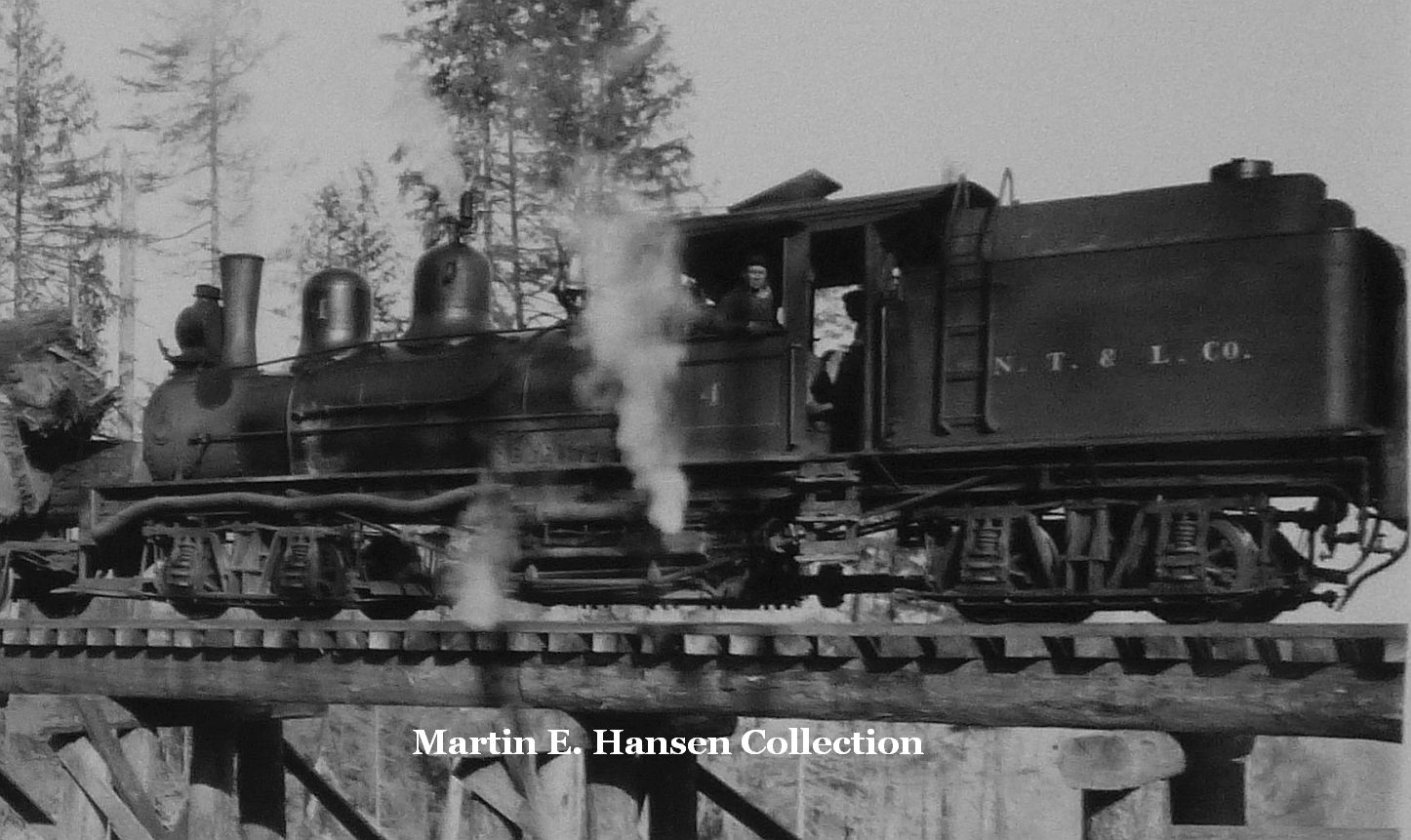

Photo Credit:
Martin E. Hansen collection
Shop Number 1943 - Built for: Chapman Tbr. Co.
{1,382nd Lima Built Shay}
Built:
7-30-1907
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
22,563 Lbs.
Factor of
Adhesion:
4.53
Maximum
Safe Speed:
17.2
Fuel Type:
Oil
Fuel Capacity:
950 Gal
Water Capacity:
1,750 Gallons
Empty Weight:
As built
83,390
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Chapman Tbr. Co., Portland & Southwestern RR #4, Scappoose, OR
(2-1913) Nehalem Tbr. & Log. Co. #4, Scappoose, OR
(1926) Clark & Wilson Lbr. Co., Scappoose, #4, OR
(1930) Clark & Wilson Lbr. Co., #4, Wilark, OR
Disposition: Scrapped
Additional Notes:
