Lima Locomotive & Machine Co.

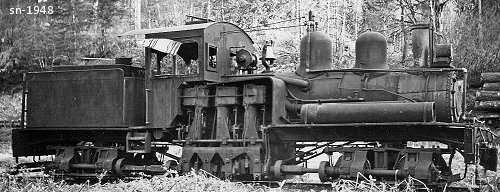

Photo Credit:
Martin E. Hansen collection
Shop Number 1948 - Built for: Stacey E. Wright Log. Co.
{1,387th Lima Built Shay}
Built:
9-11-1907
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
22,563 Lbs.
Factor of
Adhesion:

4.65
Maximum
Safe Speed:

17.2
Fuel Type:
Oil
Fuel Capacity:
800 Gals.
Water Capacity:
1,750 Gallons
Empty Weight:
As built
86,700
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Stacey E. Wright Log. Co. #2, Hartford, WA
(c1918) Anderson & Middleton Lbr. Co. #7, Aberdeen, WA
(by 8-20-1918) Danaher Lbr. Co. #2, Port Orchard, WA
(1-13-1921) Cispus Log. Co. #3, Port Orchard, WA
(9-20-1922) Cavano Log. Co. #3, Arlington (Cavano), WA
(2-28-1928) Cavano Log. Co., Winston, WA
(11-16-1928) Andron Log. Co., Mayfield, WA
Disposition: (11-28-1939) Scrapped
Additional Notes:
