Lima Locomotive & Machine Co.

Photo Credit:
Left: Robert Hanft collection - Right: by unknown

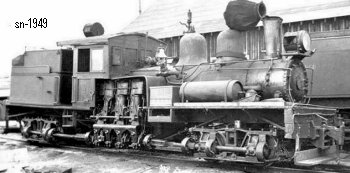

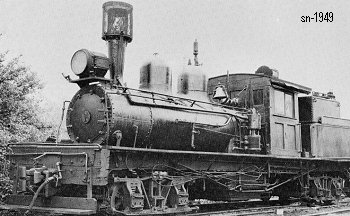

Shop Number 1949	-	Built for: International Tbr. Co
{1,388th Lima Built Shay}

Built: 8-29-1907	Class: B 42-2	Trucks: 2	Cylinders: [#-Dia. x Stroke] 3 - 10 x 12
Gear Ratio: 2.05	Wheel Dia.: 29.5"	Gauge: std.	Boiler: [Style - Dia.] ST. - 46"
Boiler Pressure: In Lbs. (PSI) 180	Tractive Effort: 16,886 Lbs.	Factor of Adhesion: 4.88	Maximum Safe Speed: 17.1
Fuel Type: Wood	Fuel Capacity: 1.5 Cords	Water Capacity: 1,560 Gallons	Empty Weight: As built 67,900
Owners: Hofius Steel & Equip. Co. (D), Seattle, WA (8-1907) Canadian Willamette Co., Ltd. (D), Campbell River, BC, CAN (8-1907) International Tbr. Co. #1, Campbell River, BC, CAN (4-10-1930) Elk River Tbr. Co. Ltd. #1, Campbell River, BC, CAN
Disposition: (1953) Scrapped at Campbell River, BC, CAN
Additional Notes: Shipped to International Log. Co., Vancouver, BC, CAN
