Lima Machine Works

Photo Credit:
Left: Wexford County Historical Society - Right:George R. Kadelak collection

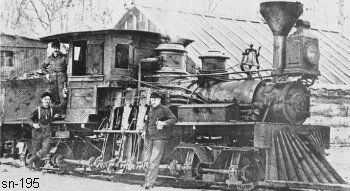

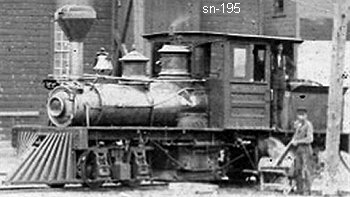

Shop Number 195 - Built for: Mitchell Brothers
{162nd Lima Built Shay}
Built:
12-26-1887
Class:
B
24-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8x8
Gear Ratio:
2.176
Wheel Dia.:
26"
Gauge:
36"
Boiler:
[Style - Dia.]
W.T. - 30"
Boiler Pressure:
In Lbs. (PSI)
150
 Tractive Effort:
7,231 Lbs.
 Factor of
Adhesion:
6.66
Maximum
Safe Speed:
14.2
Fuel Type:
Coal
Fuel Capacity:
1.5 Tons
Water Capacity:
830 Gallons
Empty Weight:
As built
31,000
Owners:
Mitchell Brothers, Jennings & Northeastern RR #195 later #2 (after 8-1890), Jennings, MI
(7-18-1921) Cadillac Chemical Co. #2, Cadillac, MI
Cummer, Diggins Co., Cadillac, MI
Disposition: (7-17-1926) Scrapped
Additional Notes:
