Lima Locomotive & Machine Co.

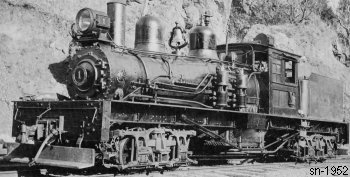

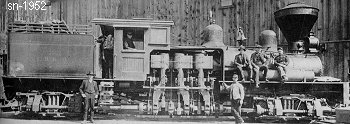

Photo Credit:
Both: from Henry L. Sorenson collection
Shop Number 1952 - Built for: Little River Redwood Co.
{1,391st Lima Built Shay}
Built:
10-19-1907
Class:
B
60-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 46.375"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
23,868 Lbs.
 Factor of
Adhesion:
5.75
 Maximum
Safe Speed:
19.4
Fuel Type:
Wood / Oil
 Fuel Capacity:
2 Cords / 2,000 Gal
 Water Capacity:
2,000 Gallons
Empty Weight:
As built
115,500
Owners:
Little River Redwood Co. #1, Crannell, CA
(1931) Hammond & Little River Redwood Co. #1, Crannell, CA
(1936) Hammond Redwood Co. #1, Samoa, CA
(1942) Hammond Lbr. Co. #1, Samoa, CA
(1942) The Pacific Lbr. Co. Scotia, CA, for parts
Disposition: (8-6-1948) Scrapped
Additional Notes: Shihpped to: Oakland, CA
