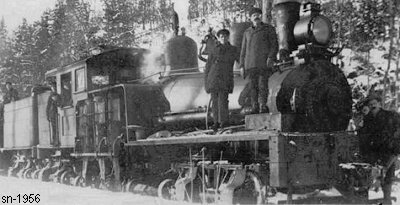

Lima Locomotive & Machine Co.

Photo Credit:
George R. Kadelak collection
Shop Number 1956 - Built for: Haskell Lbr. Co.
{1,395th Lima Built Shay}
Built:
5-11-1908
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
30,375 Lbs.
 Factor of
Adhesion:
4.52
 Maximum
Safe Speed:
19.0
Fuel Type:
Wood / Coal
 Fuel Capacity:
2.5 Cords / 5 Tons
 Water Capacity:
3,000 Gallons
Empty Weight:
As built
112,000
Owners:
Haskell Lbr. Co., Salmon River & Northern RY #53, Fassett, QUE, CAN
(1910) Fassett Lbr. Co., Salmon River & Northern RY #53, Fassett, QUE, CAN
(mid-1920s) Fassett Lbr. Co. Ltd., #53, Fossmill, ONT, CAN
(1927) Canadian Equip. (D), ONT, CAN
(c1928) Leased to: Singer Mfg.Co., Thurso & Nation Valley RY #53, Thurso, QUE, CAN
(5-20-1929) Standard Chemical Co. Ltd., Fassett, QUE, CAN
Disposition: (1938) Scrapped Fassett, Quebec, CAN
Additional Notes:
