Lima Locomotive & Machine Co.

Photo Credit:
Jon Harting collection

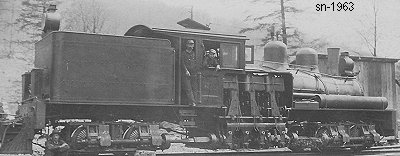

Shop Number 1963 - Built for: M. E. McNeal
{1,402nd Lima Built Shay}
Built:
11-21-1907
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
22,563 Lbs.
Factor of
Adhesion:

4.80
Maximum
Safe Speed:

17.2
Fuel Type:
Coal
Fuel Capacity:
3.75 Tons
Water Capacity:
2,200 Gallons
Empty Weight:
As built
84,000
Owners:
M. E. McNeal (Egolf Coal Mining Co.) #1, Allendale, PA
P. B. Warner, Covington, KY
(1-17-1922) For sale
Birmingham Rail & Loco. Co. (D) #1498, Birmingham, AL
(12-18-1923) Ray Lbr. Co. #3, Atmore, AL
Southern Iron & Equip. Co. (D) #2246, Atlanta, GA
(9-20-1928) Birmingham Rail & Loco. Co. (D) #1755, Birmingham, AL
Disposition: (3-24-1930) Scrapped
Additional Notes:
