Lima Locomotive & Machine Co.

Photo Credit:
by unknown

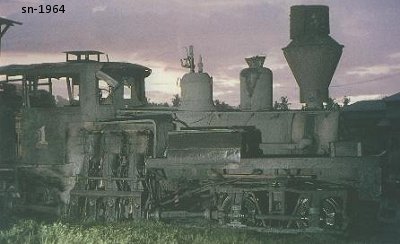

Shop Number 1964 - Built for: Insular Lbr. Co.
{1,403rd Lima Built Shay}
Built:
8-5-1907
Class:
B
24-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 8
Gear Ratio:
3.071
Wheel Dia.:
26.5"
Gauge:
42"
Boiler:
[Style - Dia.]
ST. - 35.375"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
10,680 Lbs.
 Factor of
Adhesion:
5.02
 Maximum
Safe Speed:
10.3
Fuel Type:
Wood / Coal
 Fuel Capacity:
1 Cord
Water Capacity:
830 Gallons
Empty Weight:
As built
45,360
Owners: (Includes new data after 2018 Shay book completed)
The Clark Brothers Co. (D), Belmont, NY; For:
Insular Lbr. Co. #1 "DOLLIVER", Fabrica, Negros Occidental, U. S. Territory of the Philippines
Disposition: Scrapped
Additional Notes: Shipped to Insular Lumber Co., Manila, PI
