Lima Locomotive & Machine Co.

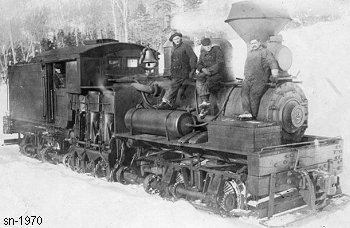

Photo Credit:
Left: Walker Transportation collection, Beverly Historical Society
Right: Bill Grove collection
Shop Number 1970 - Built for: Woodstock Lumber Co.
{1,409th Lima Built Shay}
Built:
6-27-1908
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
22,563 Lbs.
 Factor of
Adhesion:
4.69
 Maximum
Safe Speed:
17.2
Fuel Type:
Coal
Fuel Capacity:
3.75 Tons
Water Capacity:
2,200 Gallons
Empty Weight:
As built
81,360
Owners:
Woodstock Lbr. Co., Woodstock & Thornton Gore RR #2, Woodstock, NH
(1911) Wrecked, recoverd in 1915 to sell
(1915) Jackman Lbr. Co., Bald Mountain RR, Jackman, ME
(5-6-1927) For sale
Disposition: Scrapped
Additional Notes:
