Lima Locomotive & Machine Co.

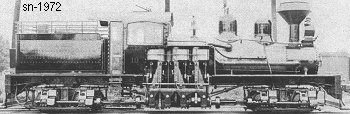

Photo Credit:
George R. Kadelak collection (BP 8-1907)
Shop Number 1972 - Built for: Trinity County Lbr. Co.
{1,411th Lima Built Shay}
Built:
8-21-1907
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 44.5"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
22,563 Lbs.
 Factor of
Adhesion:
4.36
 Maximum
Safe Speed:
17.2
Fuel Type:
Wood
Fuel Capacity:
2 Cords
Water Capacity:
1,750 Gallons
Empty Weight:
As built
80,400
Owners:
Trinity County Lbr. Co. #10, Groveton, TX
San Augustine County Lbr. Co. #10, Keltys, TX
(1923) Angelina Hardwood Lbr. Co. #10, Keltys, TX
Disposition: Scrapped
Additional Notes: New boiler 12-22-33
