Lima Locomotive & Machine Co.

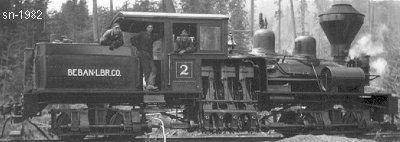

Photo Credit:
Lewis J. M. Mackie
Shop Number 1982 - Built for: J. A. Sayward
{1,421st Lima Built Shay}
Built:
10-24-1907
Class:
B
32-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 12
Gear Ratio:
3.071
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 37.25"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
15,162 Lbs.
 Factor of
Adhesion:
4.18
 Maximum
Safe Speed:
10.9
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,000 Gallons
Empty Weight:
As built
52,370
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
J. A. Sayward #1, Powell River, BC, CAN
Michigan Pacific Lbr. Co. #1, Powell River, BC, CAN
Michigan Puget Sound Lbr. Co. #1, Powell River, BC, CAN
(1919) Canadian Puget Sound Lbr. Co. #1, Jordan River, BC, CAN
(12-1921) Bloedel, Stewart & Welch Ltd. #13, Menzies Bay, BC, CAN
(1-2-1923) Bloedel, Stewart & Welch Ltd. #1 (2nd), Myrtle Point, BC, CAN
(10-17-1924) Eastern Lbr. Co. #1 (2nd), Ladysmith, BC, CAN
(1-13-1930) Frank Beban Lbr. Co. Ltd. #2, Extension, BC, CAN
Disposition: (1937) Scrapped
Additional Notes: (4-11-28) Converted to Coal
Tyee Machinery was a machine shop company in Vancouver BC CAN; never an owner as some reports indicate.
