Lima Locomotive & Machine Co.

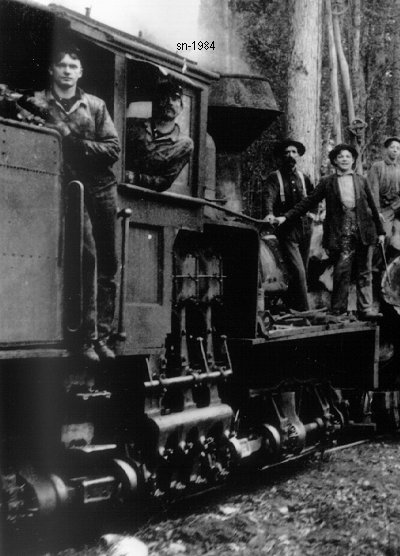

Photo Credit:
Gill Fuller collection
Shop Number 1984 - Built for: A. B. Klise Lbr. Co.
{1,423rd Lima Built Shay}
Built:
10-19-1907
Class:
B
28-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 9 x 10
Gear Ratio:
3.071
Wheel Dia.:
27.5"
Gauge:
36"
Boiler:
[Style - Dia.]
E.W.T. - 35.375"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
18,317 Lbs.
 Factor of
Adhesion:
3.19
 Maximum
Safe Speed:
10.7
Fuel Type:
Coal
Fuel Capacity:
1.75 Tons
Water Capacity:
1,000 Gallons
Empty Weight:
As built
46,900
Owners:
A. B. Klise Lbr. Co., Sturgeon Bay RR #3, Sturgeon Bay, MI
S. A. Morton Lbr. Co. #3, Wainville, WV
(by 2-16-1922) Imperial Lbr. Co. #3, Diana, WV
(2-10-1925) Holly River Lbr. Co. #3, Diana, WV
(3-6-1934) Diana Lbr. Co. #3, Diana, WV
Disposition: Scrapped
Additional Notes:
