Lima Locomotive & Machine Co.

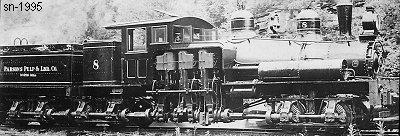

Photo Credit:
Thomas Lawson Jr. collection
Shop Number 1995 - Built for: Goshen Iron Co.
{1,434th Lima Built Shay}
Built:
9-14-1907
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
30,375 Lbs.
 Factor of
Adhesion:
4.62
 Maximum
Safe Speed:
19.0
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
109,300
Owners:
Goshen Iron Co. #5, Rich Patch Junction, WV
(1910) Parsons Pulp & Lbr. Co. #8, Horton, WV
(10-10-1919) Whitmer-Parsons Pulp & Lbr. Co. #8, Horton, WV
(5-28-1927) Spears Lbr. Co. #8, Horton, WV
Disposition: Scrapped
Additional Notes:
