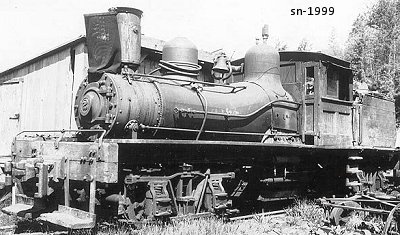

Lima Locomotive & Machine Co.

Photo Credit:
Marc Reusser collection
Shop Number 1999 - Built for: Cody Lbr. Co.
{1,438th Lima Built Shay}
Built:
9-18-1907
Class:
B
36-2
Trucks:
2
Cylinders:
[#-Dia. Dia.:x Stroke]
3 - 10 x 10
Gear Ratio:
2.05
Wheel Diam:
28"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 40"
Boiler Pressure:
In Lbs. (PSI)
.180
 Tractive Effort:
14,826 Lbs.
 Factor of
Adhesion:
5.13
 Maximum
Safe Speed:
16.3
Fuel Type:
Wood / Coal
 Fuel Capacity:
1.5 Cords / 1.75 Tons
 Water Capacity:
1,200 Gallons
Empty Weight:
As built
63,900
Owners:
Cody Lbr. Co., #2, Bandon, OR
(1910) Moore Mill & Lbr. Co. #2, Bandon, OR
(1918) Leased to: Spruce Production Div. (U. S. Army), Beaver Hill, OR
(1918) Portland Lbr, Co.*, Beaver Hill RR [SPRR#13], Beaver Hill, OR; (assigned)
(10-1918) Spruce Production Corp., (U. S. Army), Beaver Hill, OR
(11-1918) Returned to Moore Mill & Lbr. Co.
(c1927) Conlogue Brothers #2, Charleston, OR
(c1929) McKenna Lbr. Co. #2, Marshfield, OR
(c1933) Baldridge Lbr. Co. #2 (2nd), Winchester Bay, OR
Disposition: Scrapped
Additional Notes: *Cost-plus contractor for Spruce Production Division (U. S. Army)
SPRR#13was Spruce Production RR #, the designation used by Spruce Production Division (U. S. Army)
