Lima Locomotive & Machine Co.

Photo Credit:
Thomas Lawson, Jr. collection

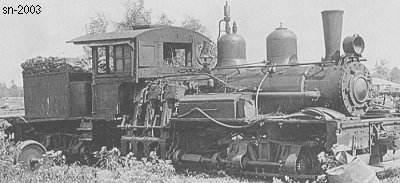

Shop Number 2003 - Built for: White Sulphur Lbr. Co., Ltd.
{1,442nd Lima Built Shay}
Built:
10-8-1907
Class:
B
32-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 12
Gear Ratio:
3.071
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]

ST. - 39.75"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
15,162 Lbs.
Factor of
Adhesion:

4.00
Maximum
Safe Speed:

10.9
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,000 Gallons
Empty Weight:
As built
50,200
Owners:
White Sulphur Lbr. Co., Ltd, Catahoula Central RY #3, Jena, LA
Haynesville Lbr. Co., Haynesville, LA
(2-3-1921) J. F. Worsley Ltd. (D), Atlanta, GA
(3-2-1921) W. P. Brown & Sons Lbr. Co., Mobile & Gulf RR #8, Fayette, AL
(c1926) W. P. Brown & Sons Lbr. Co. #4 (2nd), Zama, MS
(3-28-1931) For sale
Disposition: (1932) Scrapped at Zama, MS
Additional Notes:
