Lima Machine Works

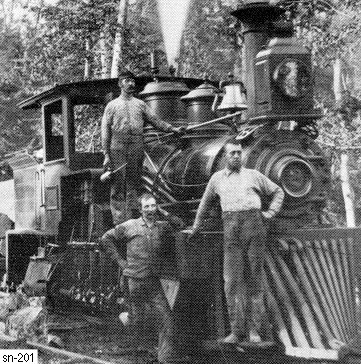

Photo Credit:
C. T. Stoner collection
Shop Number 201 - Built for: Staples & Covell
{168th Lima Built Shay}
Built:
4-14-1888
Class:
A
17-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 8x8
Gear Ratio:
3.071
Wheel Dia.:
26"
Gauge:
36"
Boiler:
[Style - Dia.]
ST. - 34"
Boiler Pressure:
In Lbs. (PSI)
150
 Tractive Effort:
6,803 Lbs.
 Factor of
Adhesion:
6.03
 Maximum
Safe Speed:
10.1
Fuel Type:
Coal
Fuel Capacity:
1.5 Tons
Water Capacity:
680 Gallons
Empty Weight:
As built
32,000
Owners:
Staples & Covell #2, Whitehall, MI
(c1896) Saginaw Lbr. Co., Saginaw, AR
(1914) Van Veneer Co., Malvern, AR
(6-2-1919) Leased to: McLean-Arkansas Lbr. Co., Bierne, AR
Jack Piland, Bierne, AR
Disposition: (by 10-1-1926) Scrapped
Additional Notes:
