Lima Locomotive & Machine Co.

Photo Credit:
by A. B. Barton

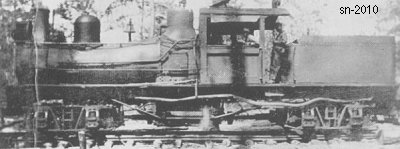

Shop Number 2010	-	Built for: Grayson-McLeod Lbr. Co.
{1,449th Lima Built Shay}

Built: 12-5-1907	Class: B 42-2	Trucks: 2	Cylinders: [#-Dia. x Stroke] 3 - 10 x 12
Gear Ratio: 2.05	Wheel Dia.: 29.5"	Gauge: std.	Boiler: [Style - Dia.] W.T. - 42"
Boiler Pressure: In Lbs. (PSI) 180	Tractive Effort: 16,886 Lbs.	Factor of Adhesion: 5.07	Maximum Safe Speed: 17.1
Fuel Type: Coal	Fuel Capacity: 2 Tons	Water Capacity: 1,560 Gallons	Empty Weight: As built 69,300
Owners: Grayson-McLeod Lbr. Co., Antoine Valley RR #4, Graysonia, AR (6-1910) Grayson-Nashville Lbr. Co., Graysonia, AR (12-1915) Ozan-Graysonia Lbr. Co., Graysonia, AR (5-16-1922) Loutre Lbr. Co. #11, Cargile, AR (11-16-1925) For sale (by 6-4-1927) Sipsey Valley Lbr. Co. #11, Buhl, AL
Disposition: Scrapped
Additional Notes: (3-23-1931) Lima visit at Buhl note; All 5 Shays are on hand (852, 1576, 2010, 2385, 3099)
