Lima Locomotive & Machine Co.

Photo Credit:
David Thomas collection

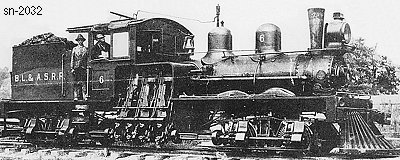

Shop Number 2032 - Built for: Chicago Mill & Lbr. Co.
{1,471st Lima Built Shay}
Built:
12-18-1907
Class:
B
32-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 12
Gear Ratio:
3.071
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]
ST. - 39.375"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
15,162 Lbs.
 Factor of
Adhesion:
4.42
 Maximum
Safe Speed:
10.9
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1,500 Gallons
Empty Weight:
As built
52,200
Owners:
Chicago Mill & Lbr. Co. #6, Blytheville, AR
(10-1908) Blytheville, Leachville & Arkansas Southern RR #6, Blytheville, AR
(by 12-19-1926) Chicago Mill & Lbr. Co. #6, Somerset, LA
Disposition: Scrapped
Additional Notes: Shipped to: East St Louis, IL
