Lima Locomotive & Machine Co.
Photo Credit:

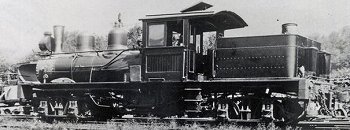

Left: Bill Groves collection

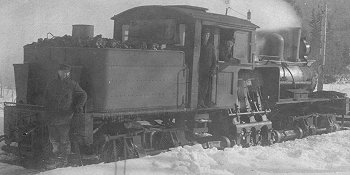

Right: by unknown c1912
Shop Number 2036 - Built for: Johnson Lbr. Co.
{1,475th Lima Built Shay}
Built:
11-11-1907
Class:
B
32-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 12
Gear Ratio:
3.071
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]
ST. - 39.375"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
15,162 Lbs.
 Factor of
Adhesion:
4.62
 Maximum
Safe Speed:
10.9

Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1,000 Gallons
Empty Weight:
As built
58,100
Owners:
Johnson Lbr. Co., Gordon Pond RR #3, Johnson, NH
(1911) Leased to: Woodstock Lbr. Co., Woodstock & Thornton Gore RR #3, Woodstock, NH
(1916) Jackman Lbr. Co. #3, Bald Mountain RR, Jackman, ME
Disposition: Scrapped
Additional Notes:
