Lima Locomotive & Machine Co.

Photo Credit:
Tony Howe collection (1914)*
Shop Number 2038 - Built for: Natalbany Lbr. Co.
{1,477th Lima Built Shay}
Built:
1-10-1908
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
22,563 Lbs.
 Factor of
Adhesion:
4.52
Maximum
Safe Speed:
17.2
Fuel Type:
Wood / Coal
 Fuel Capacity:
2 Cords / 3.25 Tons
 Water Capacity:
1,750 Gallons
Empty Weight:
As built
84,000
Owners:
Natalbany Lbr. Co., New Orleans, Natalbany & Natchez RR #2, Natalbany, LA
Disposition: Scrapped

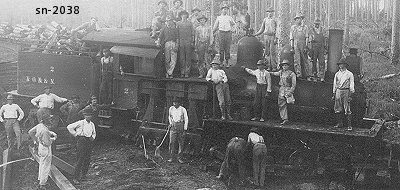

Additional Notes: * Photo is of a 1914 wreck
