Lima Locomotive & Machine Co.

Photo Credit:

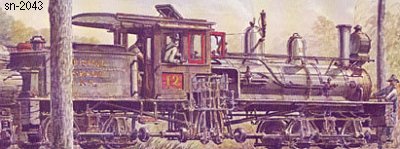

Drawn by Casey Holtzinger
Shop Number 2043 - Built for: The Prendergast Co.
{1,482nd Lima Built Shay}
Built:
2-24-1908
Class:
A
18-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 7 x 12
Gear Ratio:
3.071
Wheel Dia.:
26"
Gauge:
42"
Boiler:
[Style - Dia.]
ST. - 31.5"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
8,174 Lbs.
 Factor of
Adhesion:
5.47
Maximum
Safe Speed:
10.3
Fuel Type:
Coal
Fuel Capacity:
1.5 Tons
Water Capacity:
800 Gallons
Empty Weight:
As built
35,400
Owners:
The Prendergast Co. #3, Rapp, WV
(6-1911) For sale
(c1912) Richmond Cedar Works, Dismal Swamp RR #12, Camden Mills, VA
(by1915) converted to oil burner
Disposition: Scrapped
Additional Notes:
