Lima Locomotive & Machine Co.

Photo Credit:
Birmingham Public Library

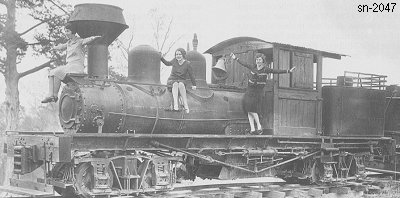

Shop Number 2047 - Built for: Allen Lbr. Co.
{1,486th Lima Built Shay}
Built:
5-19-1908
Class:
B
24-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 8
Gear Ratio:
3.071
Wheel Dia.:
26.5"
Gauge:
36"
Boiler:
[Style - Dia.]
ST. - 35.5"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
10,680 Lbs.
 Factor of
Adhesion:
4.81
 Maximum
Safe Speed:
10.3
Fuel Type:
Wood
Fuel Capacity:
1 Cord
Water Capacity:
830 Gallons
Empty Weight:
As built
43,100
Owners:
Allen Lbr. Co. #1, Sterrett, AL
(1912) Hartsfield Brothers #1, Chelsea, AL
(1919) Vida Lbr. Co. #4, Lomax, AL
(3-27-1925) For Sale
Disposition: (9-4-1926) Scrapped
Additional Notes: Shipped to: Halma, AL
Changed to Coal 1-24-18
?? Possible owner: Stapp Bass Lbr. Co., Chelsea, AL
