Lima Locomotive & Machine Co.

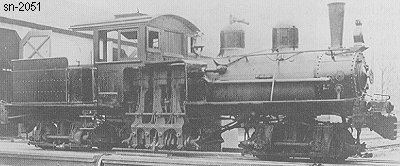

Photo Credit:
Birmingham Rail & Locomotive Company Archives (1918)
Shop Number 2051 - Built for: Holmes Lbr. Co.
{1,490th Lima Built Shay}
Built:
2-17-1908
Class:
B
32-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 12
Gear Ratio:
3.071
Wheel Dia.:
28"
Gauge:
36"
Boiler:
[Style - Dia.]

ST. - 39.375"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
15,162 Lbs.
Factor of
Adhesion:

4.08
Maximum
Safe Speed:

10.9
Fuel Type:
Coal
Fuel Capacity:
1.75 Tons
Water Capacity:
1,000 Gallons
Empty Weight:
As built
49,600
Owners:
Holmes Lbr. Co. #2, Scottsville, AL
Birmingham Rail & Loco. Co. (D), Birmingham, AL
(7-6-1911) Cohn & Goldberg Lbr. Co., Elmore, AL
Birmingham Rail & Loco. Co. (D) #1224, Birmingham, AL
(11-5-1918) C. H. Daniel, Richards, TX
(by 4-9-1921) West Lbr. Co., Westville, TX
(2-10-1924) Buschow Lbr. Co., Stapp, OK
Disposition: Scrapped
Additional Notes:
