Lima Locomotive & Machine Co.

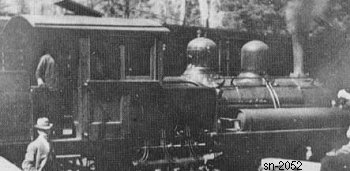

Photo Credit:
Left: David Thomas collection - Right: Narrow Gauge & Short Line Gazette
Shop Number 2052 - Built for: Crystal River Marble Co.
{1,491st Lima Built Shay}
Built:
8-3-1909
Class:
B
32-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 12
Gear Ratio:
3.071
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]

ST. - 39.375"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
15,162 Lbs.
Factor of
Adhesion:

4.44
Maximum
Safe Speed:

10.9
Fuel Type:
Coal
Fuel Capacity:
1.75 Tons
Water Capacity:
1,000 Gallons
Empty Weight:
As built
55,000
Owners: (Includes new data after 2018 Shay book completed)
Crystal River Marble Co., Treasury Mountain RY #1, Marble, CO
(1916) Operation abandoned, Shay stored
(6-11-1937) The Crystal River & San Juan RR Co., Crystal River & San Juan RR #1 (2nd), Marble, CO, (not used)
(7-2-1942) Barnett Machinery & Supply Co. (D), Denver, CO
Disposition: (1948) Scrapped
Additional Notes: Shipped to: Pueblo, CO
