Lima Locomotive & Machine Co.

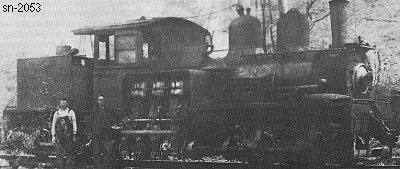

Photo Credit:
Mrs. Ruth Geary collection
Shop Number 2053 - Built for: Blair Lbr. Co.
{1,492nd Lima Built Shay}
Built:
11-13-1908
Class:
B
36-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.05
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]
ST. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
14,826 Lbs.
 Factor of
Adhesion:
5.01
 Maximum
Safe Speed:
16.3
Fuel Type:
Coal
Fuel Capacity:
1.75 Tons
Water Capacity:
1,200 Gallons
Empty Weight:
As built
60,000
Owners:
Blair Lbr. Co. #1, Kuhn, PA
(1911) Blair Lbr. Co. #1, Kregar, PA
Disposition: (1927) Scrapped
Additional Notes:
