Lima Locomotive & Machine Co.

Photo Credit:
Tom Lawson Jr. collection

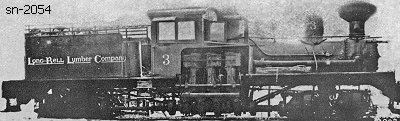

Shop Number 2054 - Built for: Crowell & Spencer Lbr. Co.
{1,493rd Lima Built Shay}
Built:
7-25-1908
Class:
B
36-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.050
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 40"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
18,290 Lbs.
Factor of
Adhesion:

4.63
Maximum
Safe Speed:

13.2
Fuel Type:
Wood
Fuel Capacity:
2 Cords
Water Capacity:
2,000 Gallons
Empty Weight:
As built
68,200
Owners:
Crowell & Spencer Lbr. Co., Ltd. #3, Longleaf, LA
(12-1916) Hudson River Lbr. Co. (Long-Bell Lbr. Co.), Louisiana & Pacific RY #3, DeRidder, LA
(5-24-1922) Long-Bell Lbr. Co., (Hudson River Division), #3, DeRidder, LA
Birmingham Rail & Loco. Co. #823 (D), Birmingham, AL
(8-10-1928) D. A. Sprinkle, Parlers, #3, Parlers, SC
Birmingham Rail & Loco. Co. (D), Birmingham, AL
(3-9-1936) Inter-American Corp. (D), Miami, FL
Disposition: Scrapped
Additional Notes: (1936) Likely exported
