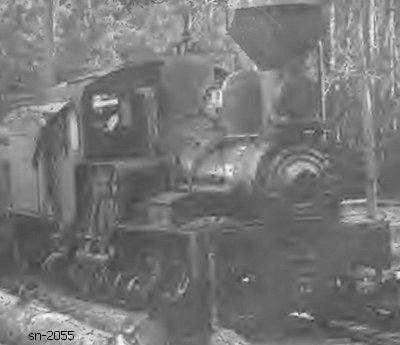

Lima Locomotive & Machine Co.

Photo Credit:
1909 American Lumberman
Shop Number 2055 - Built for: Huie-Hodge Lbr. Co.
{1,494th Lima Built Shay}
Built:
1-22-1908
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.529
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
20,832 Lbs.
 Factor of
Adhesion:
4.05
 Maximum
Safe Speed:
13.9
Fuel Type:
Wood / Coal
 Fuel Capacity:
1.5 Cords / 2 Tons
 Water Capacity:
2,000 Gallons
Empty Weight:
As built
67,600
Owners:
Huie-Hodge Lbr. Co., North Louisiana & Gulf RR #4, Hodge, LA
(12-1-1921) Hodge-Hunt Lbr. Co., North Louisiana & Gulf RR #4, Hodge, LA
(11-19-1927) Southern Advance Bag & Paper Co., #4, Hodge, LA
Disposition: Scrapped
Additional Notes:
