Lima Locomotive & Machine Co.

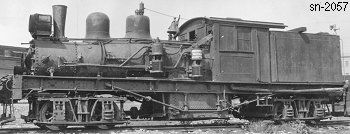

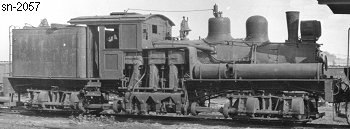

Photo Credit:
Both: John Henderson collection (9-1926)
Shop Number 2057 - Built for: Chicago, Milwaukee & St. Paul RR
{1,796th Lima Built Shay}
Built:
3-18-1908
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
22,563 Lbs.
Factor of
Adhesion:

4.86
Maximum
Safe Speed:

17.2
Fuel Type:
Coal
Fuel Capacity:
4 Tons
Water Capacity:
2,400 Gallons
Empty Weight:
As built
84,400
Owners:
Chicago Milwaukee & St Paul RY Co., Chicago, Milwaukee & St. Paul RY #1499 later #25 [in 1912], Gleason, WI
(by 10-10-1921) Chicago Milwaukee & St Paul RY Co., Chicago, Milwaukee & St. Paul RY #25, Tomahawk, WI [stored], not used
(1-19-1927) Leased to: Heineman Lbr. Co., Merrill, WI
(1-30-1947) Leased to: J. L. Kuester, (Machine Shop) Clintonville, WI
Disposition: Scrapped
Additional Notes: Shipped to: North Milwaukee, WI
