Lima Locomotive & Machine Co.

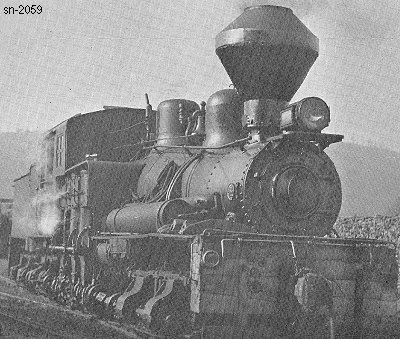

Photo Credit:
by Clyde L. Collom
Shop Number 2059 - Built for: The William Irwin Co.
{1,498th Lima Built Shay}
Built:
4-14-1908
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
30,375 Lbs.
 Factor of
Adhesion:
4.70
 Maximum
Safe Speed:
19.0
Boiler Pressure:
In Lbs. (PSI)
 Tractive Effort:
Lbs.
 Factor of
Adhesion:
 Maximum
Safe Speed:
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
111,600
Owners:
The William Irvin Co. #2, Big Run, PA
Central Pennsylvania Lbr. Co. #58 (2nd), Kinzua (Ralston), PA
(c1926) Day Chemical Co. Valley RR #58, Westline, PA
(11-1931) Union Charcoal & Chemical Co. #58, Westline, PA
(5-14-1946) Susquehanna Chemical Co. #58, Bradford, PA
Disposition: (11-19-1949) Scrapped
Additional Notes: Built with a height restriction of 11'-9"
