Lima Locomotive & Machine Co.

Photo Credit:
John T. Labbe collection

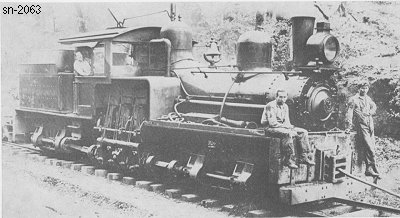

Shop Number 2063 - Built for: Chinook Lbr. Co.
{1,502nd Lima Built Shay}
Built:
12-5-1907
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
5.26
Maximum
Safe Speed:
17.1
Fuel Type:
Oil
Fuel Capacity:
850 Gals.
Water Capacity:
1,560 Gallons
Empty Weight:
As built
72,910
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Chinook Lbr. Co. #3, Deep River, WA
(11-22-1909) Campbell Log.Co. #3, Deep River, WA
Campbell Lbr. Co. #3, Skamokawa, WA
(8-16-1920) Pacific Export Co., Deep River, WA
Holland, Briggs & Avery Log. Co. #3, Grays River, WA
(4-30-1924) Umpqua Mills & Tbr. Co. #1, Reedsport, OR
Disposition: Scrapped
Additional Notes: Shipped to: Astoria, OR
