Lima Locomotive & Machine Co.

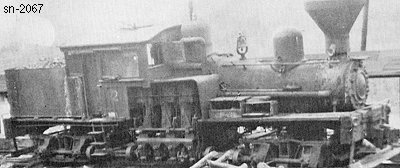

Photo Credit:
Richard Cartwright
Shop Number 2067 - Built for: Commonwealth Lbr. Co.
{1,506th Lima Built Shay}
Built:
4-24-1908
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.529
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
20,832 Lbs.
Factor of
Adhesion:

4.13
Maximum
Safe Speed:

13.9
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1,560 Gallons
Empty Weight:
As built
69,700
Owners:
Standard Supply & Equip. Co. #2, Pittsburg, PA; For:
Commonwealth Lbr. Co. #2, Alderson, WV
(c1918) Glenray Lbr. Co. #2, Glenray, WV
(c1921) Watson Lands Lbr. Co. #2 (2nd), Mayburg, PA
(9-18-1923) Tionesta Valley Chemical Co. #2 (T. H. Quinn & Co.), Mayburg, PA
(1930) Mayburg Chemical Co. #2 (T. H. Quinn & Co.), Mayburg, PA
Sigel & Co., Warren, OH - for scrap
Disposition: (1943) Scrapped
Additional Notes:
