Lima Locomotive & Machine Co.

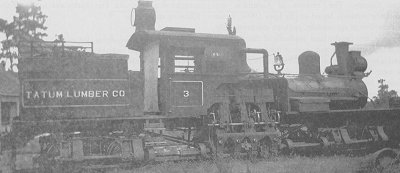

Photo Credit:
by W. H. B. Jones from D. S. Price collection
Shop Number 2073 - Built for: Tatum Lbr. Co.
{1,512th Lima Built Shay}
Built:
4-3-1908
Class:
B
36-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.05
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 40"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
14,826 Lbs.
 Factor of
Adhesion:
5.30
 Maximum
Safe Speed:
16.3
Fuel Type:
Wood / Coal
 Fuel Capacity:
1.5 Cords / 1.75 Tons
 Water Capacity:
1,200 Gallons
Empty Weight:
As built
65,800
Owners:
Tatum Lbr. Co. #3, Bonhomie, MS
Disposition: (1942) Scrapped
Additional Notes:
