Lima Machine Works

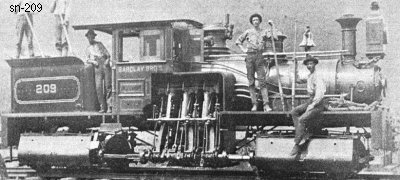

Photo Credit:
George Kadelak collection
Shop Number 209 - Built for: Barclay Brothers
{175th Lima Built Shay}
Built:
6-9-1888
Class:
B
24-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8x8
Gear Ratio:
2.176
Wheel Dia.:
26"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 36"
Boiler Pressure:
In Lbs. (PSI)
150
 Tractive Effort:
7,231 Lbs.
 Factor of
Adhesion:
6.33
 Maximum
Safe Speed:
14.2
Fuel Type:
Coal
Fuel Capacity:
1.5 Tons
Water Capacity:
830 Gallons
Empty Weight:
As built
35,400
Owners:
Barclay Brothers #209, Sinnemahoning, PA
Ontonagon Lbr. & Cedar Co., Ontonagon, MI
(4-16-1919) Dollar Bay Lbr. Co, Dollar Bay, MI
(5-12-1920) D. B. Straley, Crown Point, IN
Monmouth Stone Co., Monmouth, IL
Disposition: Scrapped
Additional Notes:
