Lima Locomotive & Machine Co.

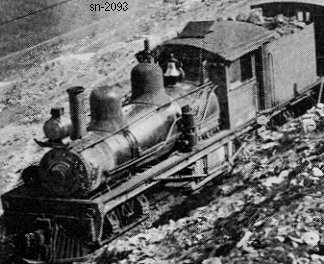

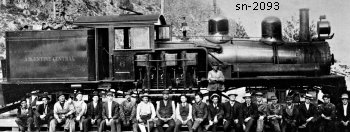

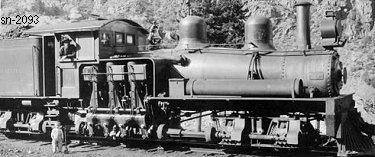

Photo Credit:
Left: Narrow Gauge in the Rockies, Beebe & Clegg
Top Right: Denver Public Lib. collection
Lower Right: Martin E. Hansen collection
Shop Number 2093 - Built for: Argentine Central RY
{1,532nd Lima Built Shay}
Built:
6-15-1908
Class:
B
45-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
36"
Boiler:
[Style - Dia.]

E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
22,563 Lbs.
Factor of
Adhesion:

4.84
Maximum
Safe Speed:

17.2
Fuel Type:
Coal
Fuel Capacity:
3.25 Tons
Water Capacity:
2,400 Gallons
Empty Weight:
As built
82,850
Owners:
Argentine Central RY Co., Argentine Central RY #6, Silver Plume, CO
(1913) Georgetown & Grays Peak RY #6, Silver Plume, CO
(1913) Argentine & Grays Peak RY #6, Silver Plume, CO
(8-1915) Marsh Lbr. Co., Loyalton, CA
(9-23-1918) [Std.] Clover Valley Lbr. Co. #50, Loyalton, CA
Disposition: (1955) Scrapped
Additional Notes: Shipped to: Denver, CO
Converted to oil burner
