Lima Locomotive & Machine Co.

Photo Credit:
by Al Hodgin

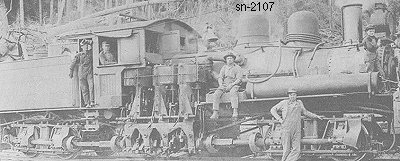

Shop Number 2107 - Built for: Skagit Mill Co.
{1,546th Lima Built Shay}
Built:
8-14-1908
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
20,056 Lbs.
 Factor of
Adhesion:
5.14
 Maximum
Safe Speed:
19.4
Fuel Type:
Wood
Fuel Capacity:
2 Cords
Water Capacity:
1,750 Gallons
Empty Weight:
As built
85,200
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Skagit Mill Co. #1, Lyman, WA
Converted to oil fuel while at Skagit Mill Co.
Lyman Tbr. Co. #1, Hamilton, WA
(1937) Soundview Pulp Co. #1, Hamilton, WA
(8-12-1942) Marona Mill Co. #1, Acme, WA
Disposition: Scrapped

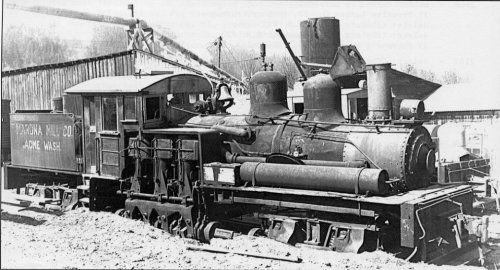

Additional Notes: This Shay was not converted to 2-truck diesel-hydraulic loco as has been published. That conversion was made to sn-733, which is in the back ground in this April 1951 photo by Albert Farrow:
