Lima Machine Works

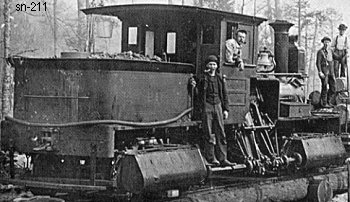

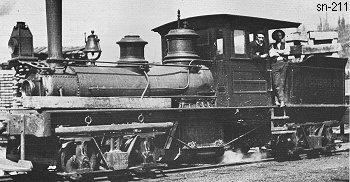

Photo Credit:
Left: Joseph Williams collection - Right: Walter C. Casler collection
Shop Number 211 - Built for: Arthurs Coal & Lbr. Co.
{177th Lima Built Shay}
Built:
5-29-1888
Class:
A
17-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 8x8
Gear Ratio:
3.071
Wheel Dia.:
26.5"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 30"
Boiler Pressure:
In Lbs. (PSI)
150
Tractive Effort:
6,675 Lbs.
Factor of
Adhesion:

4.99
Maximum
Safe Speed:

10.3
Fuel Type:
Coal
Fuel Capacity:
1.25 Tons
Water Capacity:
680 Gallons
Empty Weight:
As built
27,500
Owners:
Arthurs Coal & Lbr. Co. #211, Truman, PA
Benjamin F. Cory #211, Coryville, PA
(8-12-1920) Elk Tanning Co. #14, Ridgway, PA
Elk Tanning Co. #14, Portland Mills, PA
(by 11-11-1926) Elk Tanning Co. #14, Emporium, PA
(2-5-1929) Elk Tanning Co. #14, Clearfield, PA
Disposition: Scrapped
Additional Notes:
