Lima Locomotive & Machine Co.
Photo Credit:
Left: Yale Forest Library
Right: Murry Hammond collection

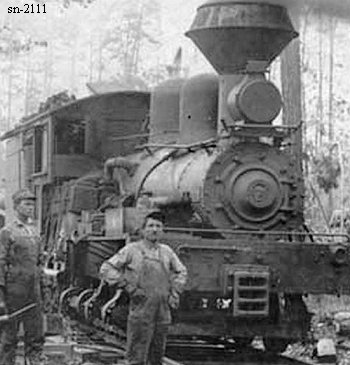

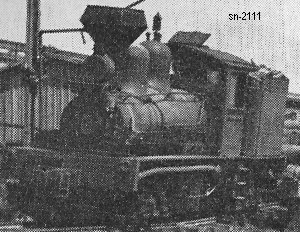

Shop Number 2111 - Built for: Thompson Brothers Lbr. Co.
{1,550th Lima Built Shay}
Built:
11-9-1908
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.529
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
5.09
Maximum
Safe Speed:
17.1
Fuel Type:
Wood / Coal
 Fuel Capacity:
1.5 Cords / 2 Tons
 Water Capacity:
2,200 Gallons
Empty Weight:
As built
67,200
Owners:
Thompson Brothers Lbr. Co. #7, Doucette, TX
Fidelity Lbr. Co. (Long-Bell Lbr. Co.) #7 (2nd), Doucette, TX
(11-1-1922) Long-Bell Lbr. Co. Doucette, TX
(9-14-1928) Long-Bell Lbr. Co., Ryderwood, WA
(11-07-1928) Zimmerman, Wells & Brown Co. (D), Portland, OR
Disposition: Scrapped
Additional Notes:
