Lima Locomotive & Machine Co.

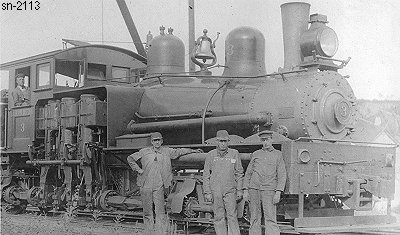

Photo Credit:
Steve Hauff colection
Shop Number 2113 - Built for: Hardwick & Woodhury RR
{1,552nd Lima Built Shay}
Built:
1-23-1909
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 46.375"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
30,375 Lbs.
 Factor of
Adhesion:
4.47
 Maximum
Safe Speed:
19.0
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
104,500
Owners:
Hardwick & Woodbury RY Co., Hardwick & Woodhury RR #3 "CHARLES W. LEONARD" later "GEORGE H. BICKFORD", Hardwick, VT
(7-8-1937) St. Johnsbury & Lake Champlain RR Co., St. Johnsbury & Lake Champlain RR #3, Montpelier, VT
Disposition: Scrapped
Additional Notes:
