Lima Locomotive & Machine Co.

Photo Credit:
by unknown

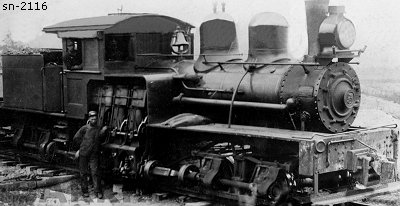

Shop Number 2116 - Built for: Sibley Quarry Co.
{1,555th Lima Built Shay}
Built:
1-29-1909
Class:
B
36-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.05
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]
ST. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
14,826 Lbs.
 Factor of
Adhesion:
5.16
 Maximum
Safe Speed:
16.3
Fuel Type:
Coal
 Fuel Capacity:
1.75 Tons
 Water Capacity:
1,200 Gallons
Empty Weight:
As built
63,700
Owners:
Sibley Quarry Co. #5, Trenton, MI
(by 9-23-1924) The Solvay Process Co. #5, Sibley, MI
Disposition: (1931) Scrapped
Additional Notes: (9-21-1926) Boiler on 2116 has been condemmed
