Lima Machine Works

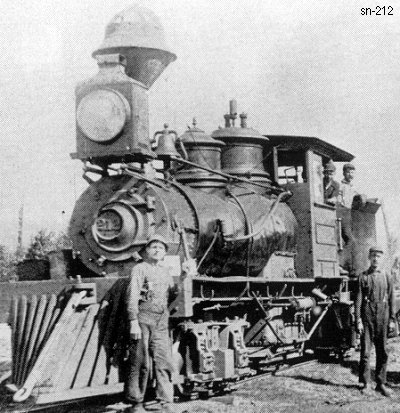

Photo Credit:
C. T. Stoner collection
Shop Number 212 - Built for: Wilson, Luther & Wilson
{178th Lima Built Shay}
Built:
5-16-1888
Class:
B
28-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10x10
Gear Ratio:
2.050
Wheel Dia.:
28"
Gauge:
36"
Boiler:
[Style - Dia.]
WT. - 40"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
13,179 Lbs.
 Factor of
Adhesion:
4.28
 Maximum
Safe Speed:
16.3
Fuel Type:
Coal
Fuel Capacity:
1.75 Tons
Water Capacity:
1,200 Gallons
Empty Weight:
As built
44,000
Owners:
Wilson, Luther & Wilson #212, Luther, MI
(8-1892) Mitchel Brothers, Zuni Mountain RR, Mitchel, NM
(1894) Saginaw Lbr. Co., Saginaw Southern RY, Chalender, AZ
(9-22-1898) Saginaw Lbr. Co., Saginaw Southern RY #212, Willaims, AZ
(12-7-1899) Saginaw and Manistee Lbr. Co., Saginaw Southern RR #212, Williams, AZ
(3-1908) S. A. Compania Maderia y F. C. de Zitacuaro, F. C. Toluca y Zitacuaro, Zitacuaro, MIC, Mexico
S. A. Ferrocarril de Toluca y Zitacuaro #3, Zitacuaro, MIC, Mexico
Disposition: Scrapped
Additional Notes:
