Lima Locomotive & Machine Co.

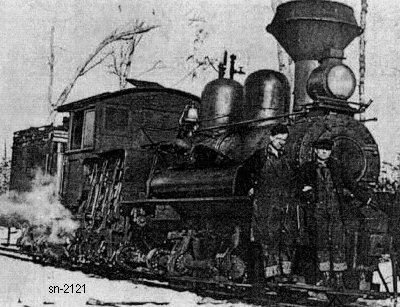

Photo Credit:
by S. A. Johnson from Catherine Mess collection
Shop Number 2121 - Built for: John Schroeder Lbr. Co.
{1,560th Lima Built Shay}
Built:
3-30-1909
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
ST. - 46"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
4.82
 Maximum
Safe Speed:
17.1
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,560 Gallons
Empty Weight:
As built
66,900
Owners:
John Schroeder Lbr. Co. #1, Cedar, WI
(1913) Kneeland-McLurg Lbr. Co. #1, Phillips, WI
(10-30-1922) Kneeland-McLurg Lbr. Co., Lake Shore & Eastern RR #1, Morse, WI
Disposition: (1932) Scrapped at Morse, WI
Additional Notes:
