Lima Locomotive & Machine Co.


Photo Credit:

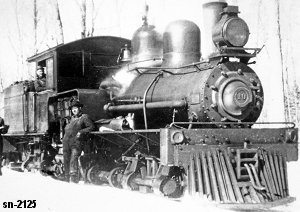

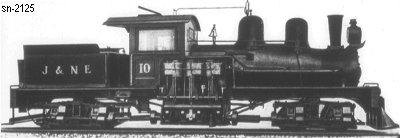

Top: Lima Builder's photo from Loco World Magazine (BP 12-1908)
Bottom both: Missaukee County Museum collection
Shop Number 2125 - Built for: Mitchell Brothers
{1,564th Lima Built Shay}
Built:
12-12-1908
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Diam x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
36"
Boiler:
[Style - Dia.]
E.W.T. - 42.125"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
4.91
 Maximum
Safe Speed:
17.1
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1,560 Gallons
Empty Weight:
As built
65,900
Owners:
Mitchell Brothers, Jennings & Northeastern RR #10, Jennings, MI
(by 1920) W. M. Ritter Lbr. Co. #2125, McClure, VA
(9-14-1928) Leased to: Chemical Wood Corp., Carfax, VA
(7-27-1929) W. M. Ritter Lbr. Co. #10, Fremont (McClure), VA
(4-18-1940) [48"] Red Jacket Coal Corp. #10, Keen Mountain, VA,
(10-19-1946) For sale
Disposition: (7-21-1947) Dismantled and sold for scrap
Additional Notes:
