Lima Locomotive & Machine Co.

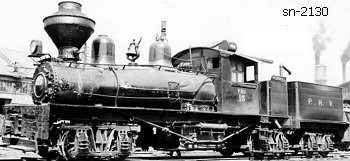

Photo Credit:
Left: David Thomas collection - Right: Thomas Lawson Jr. collection
Shop Number 2130 - Built for: Croft Lbr. Co.
{1,569th Lima Built Shay}
Built:
6-28-1909
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 46.375"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
30,375 Lbs.
Factor of
Adhesion:

4.64
Maximum
Safe Speed:

19.0
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
109,700
Owners:
(7-16-1909) Croft Lbr. Co., Croft RR #2, Alexander, WV
(2-21-1925) For sale
(11-25-1925) Birmingham Rail & Loco. Co. (D) #1609, Birmingham, AL
(4-17-1926) Denkmann Lbr. Co. #9, Norfield, MS
(c1933) Pearl River Valley Lbr. Co. #15, Canton, MS
(9-1938) Denkmann Lbr. Co. #15, Canton, MS
(1-1946) King Lbr. Industries #15, Canton, MS
Disposition: (1949) Scrapped
Additional Notes:
