Lima Locomotive & Machine Co.

Photo Credit:
George R. Kadelak collection

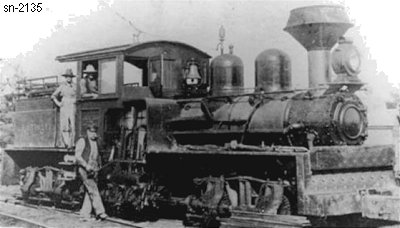

Shop Number 2135 - Built for: British Australian Tbr. Co. Ltd.
{1,574th Lima Built Shay}
Built:
2-24-1909
Class:
A
20-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 8 x 12
Gear Ratio:
3.071
Wheel Dia.:
26"
Gauge:
42"
Boiler:
[Style - Dia.]
ST. - 35.375"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
10,886 Lbs.
 Factor of
Adhesion:
4.56
 Maximum
Safe Speed:
10.1
Fuel Type:
Wood
Fuel Capacity:
1 Cord
Water Capacity:
800 Gallons
Empty Weight:
As built
41,498
Owners:
Gibson, Battle & Co. (D), Sydney, Australia
British Australian Tbr. Co. Ltd., Coff's Harbour, New South Wales, Australia
(1916) Laheys, Ltd., Canungra & Pine Creek Log. Tramwa, Canungra, Queensland, Australia
(1915) converted to coal burner
Disposition: (after 1935) left derelict at Canungra
Additional Notes: Shipped to R. W. Cameron & Co., NYC, NY
