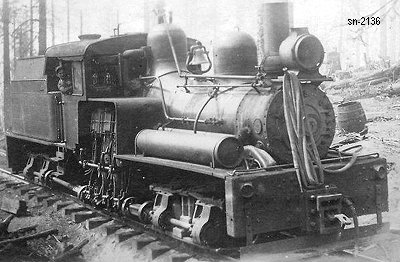

Lima Locomotive & Machine Co.

Photo Credit:
by unknown
Shop Number 2136 - Built for: Lytle Log. & Mercantile Co.
{1,575th Lima Built Shay}
Built:
3-6-1909
Class:
B
60-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std..
Boiler:
[Style - Dia.]
E.W.T. - 46.375"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
26,852 Lbs.
 Factor of
Adhesion:
4.48
 Maximum
Safe Speed:
17.2
Fuel Type:
Wood
Fuel Capacity:
2 Cords
Water Capacity:
2,000 Gallons
Empty Weight:
As built
98,700
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Lytle Log. & Mercantile Co. #3, Hoquiam, WA
(11-21-1922) Linco Log. & Lbr. Co. #3, Lindberg, WA
(2-1-1923) C. A. Taylor Log. & Lbr. Co. #3, Kelso, WA
Hofius Steel & Equip. Co. (D), Seattle, WA
Disposition: (1-25-1936) Scrapped
Additional Notes:
