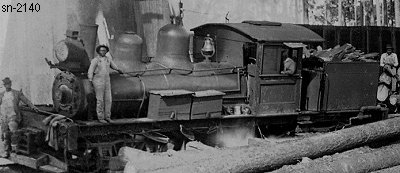

Lima Locomotive & Machine Co.

Photo Credit:
Robert Eagle collection (1916)
Shop Number 2140 - Built for: The K. C. Lbr. Co.
{1,579th Lima Built Shay}
Built:
2-22-1909
Class:
B
36-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.05
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 39.375"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
14,826 Lbs.
Factor of
Adhesion:

5.09
Maximum
Safe Speed:

16.3
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1,200 Gallons
Empty Weight:
As built
60,600
Owners:
The K. C. Lbr. Co. #3, Lucedale, MS
(1915) J. M. Hemphill Lbr. Co. #3, Rhodes, MS
(11-1917) J. M. Griffin #3, Rhodes, MS
(1919) J. M. Griffin #3, Blodgett, MS
(9-9-1921) C. & R. Lbr. Co. #3, Blodgett, MS
(2-23-1922) Birmingham Rail & Loco. Co. (D), Birmingham, AL
(8-11-1923) Brown Paper Mill Co., West Monroe, LA
(6-13-1928) For sale
Disposition: (after 1931) Scrapped
Additional Notes: (3-27-1931) Still for sale
Converted to wood burner
