Lima Locomotive & Machine Co.

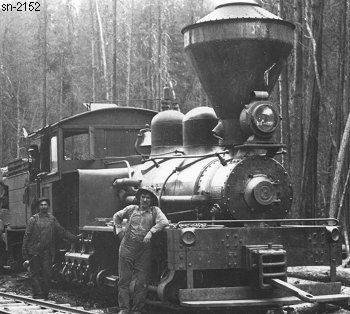

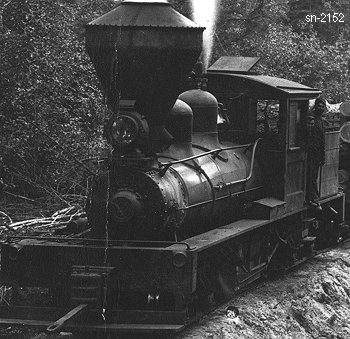

Photo Credit:
Both: by Frank Palmer
Shop Number 2152 - Built for: Consolidated Lbr. Co.
{1,591st Lima Built Shay}
Built:
3-25-1909
Class:
B
32-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 12
Gear Ratio:
3.071
Wheel Dia.:
28"
Gauge:
36"
Boiler:
[Style - Dia.]
E.W.T. - 37.25"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
15,162 Lbs.
 Factor of
Adhesion:
4.19
 Maximum
Safe Speed:
10.9
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,000 Gallons
Empty Weight:
As built
52,200
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Consolidated Lbr. Co. #3, Elk, WA
(1916) Edwards & Bradford Lbr. Co. #3, Elk, WA
Disposition: Scrapped
Additional Notes:
