Lima Locomotive & Machine Co.

Photo Credit:
Steve Hauff collection

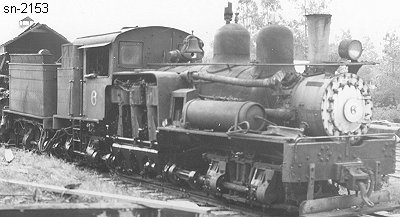

Shop Number 2153 - Built for: California Door Co.
{1,592nd Lima Built Shay}
Built:
4-26-1909
Class:
C
60-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.529
Wheel Dia.:
32"
Gauge:
36"
Boiler:
[Style - Dia.]

E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
25,820 Lbs.
Factor of
Adhesion:

4.63
Maximum
Safe Speed:

15.1
Fuel Type:
Oil
Fuel Capacity:
800 Gals.
Water Capacity:
2,000 Gallons
Empty Weight:
As built
100,300
Owners:
Norman B Livermore & Co. (D), San Francisco, CA
California Door Co. #6, Diamond Springs, CA, For:
Diamond & Caldor RY #6, Diamond Springs, CA
Disposition: (1953) Scrapped
Additional Notes:
